Cerebral cortex neurons with extra spikes:
a normal substrate for epileptic discharges?

WILLIAM H. CALVIN and GEORGE W. SYPERT

Department of Neurological Surgery,
University of Washington School of Medicine,
Seattle, Wash. 98195 (U.S.A.)

(Accepted October 14th, 1974)

Double spikes during otherwise rhythmic discharge were frequently observed in 'fast' pyramidal tract neurons in response to steady depolarizing currents injected through the recording micropipette. The extra spike appears to arise from a large depolarizing afterpotential crossing the falling threshold several milliseconds following a spike; extra spikes themselves may generate further extra spikes in a similar manner, generating burst patterns which are strikingly similar to those of epileptic neurons.
      Such conclusions are based upon an ability to identify 3 distinct modes of repetitive firings. When each action potential ('spike') in a repetitive train appears to be associated with discrete synaptic inputs which summate to cross the threshold (Fig. 1J), it is natural to view the neuron's input-output conversion function as analogous to an AND gate even though, in the more typical situations, the individual input components are so small that they cannot be readily distinguished in a depolarizing wave (for example, the first synaptic wave in Fig. IJ). When such a wave is large enough to cross the threshold occasionally, an irregular spike train is generated. The AND gate concepts which arise from such examples have traditionally furnished the prevalent neurophysiological view of neuron input-output conversion; however, two other modes of repetitive spike generation exist which imply rather different conversions6. Calvin6 has proposed that repetitive firing, such as seen in Fig. 1J, be denoted the 'occasional spike mode' to distinguish it from the more rhythmic discharges which arise if a longer-lasting synaptic wave should attempt to hold the membrane potential above the threshold. This 'rhythmic firing mode' is characterized by a rather linear6, 9, 11, 21 conversion of sustained synaptic currents into discharge rates in a manner analogous to current-controlled oscillators. Standard intracellular recording techniques were employed, including moderate capacity neutralization. Steady currents were passed using a bridge circuit. Micropipettes were beveled3 and filled with KCI; they were selected for their ability to pass 20 nA currents without polarization (resistance range 4-8 Mohm). Twenty cats were anesthetized with pentobarbital (moderate to deep levels) and paralyzed with gallamine9. To minimize cortical pulsations, we used wide bifrontal exposure, cisterna! drainage, a presser foot, and a bilateral pneumothorax with the rib cage held in an expanded position. Most recordings were from postcruciate gyrus, area praecentralis gigantopyramidalisl6. A concentric stimulating electrode in the medullary pyramids (posterior approach) served to identify antidromically and classify pyramidal tract (PT) cells by conduction velocity; 'fast' are > 20 m/see, following Takahashi28. The surface electrocorticogram (ECoG) was recorded with a surface electrode near the penetration site. Because formerly healthy neurons will, upon deterioration of the spike heights below about 60 mV, often exhibit only transient firing to sustained current, we have selected for this report only neurons whose spikes peaked 70-130 mV above the resting potential and which had stable frequency-current curves. Whether a synaptic wave (for example, the ones associated with the spindles in the surface electrocorticogram) elicits occasional or rhythmic mode discharges depends in part upon the biasing created by other inputs to the neuron. To demonstrate this, we mimicked steady synaptic currents by injecting steady currents through the intracellular recording Microelectrode. Spindle-associated synaptic waves27 arising from the—80 mV resting potential occasionally crossed threshold (Fig. IJ).
      If injected currents depolarized the membrane enough to set up a continuous rhythmic discharge, the spindle inputs then merely modulated the firing rate (Fig. IK). When we explored with steps of injected current during the quiescent periods between spindles, we found the adapted firing rate to increase linearly with current (Fig. IE) as shown by earlier workers1l 2l. In this particular neuron, as in many others, unitaryappearing events in the baseline could sometimes be seen (as in Fig. II)l It l3'l4 22 suggesting either unitary postsynaptic potentials from a single bursting input or repetitive firing in a dendritic spike generator.
      It has been recently noted6,6a that a third mode of repetitive firing may be deduced in records from many different preparations; it typically takes the form of a 'doublet', consisting of an extra spike appearing several milliseconds following a spike. In motoneurons6 9, in crustacean stretch receptorsl5, and in hippocampal pyramidal neuronsl8, such doublets (or triplets, etc.) are clearly associated with a large depolarizing'afterpotential' following the spike; when large enough, these humps appear to rise through the falling threshold several milliseconds after the spike, thus eliciting an extra spike.
      In 8 of our 'fast PT' neurons, we have observed such doublet discharges. One may find injected current strengths at which the doublets appear occasionally in the otherwise rhythmic discharge (Fig. IC); examination of the membrane potential trajectory between spikes (Fig. 1 G) reveals a large hump-like depolarizing afterpotential from which the extra spike appears to arise. Higher currents cause the doublets to become more prominent (Fig. ID), unlike the doublets in spinal motoneurons which disappear when the rhythmic firing rate is elevated6,l7. These neurons exhibit some tendency for long interspike intervals to follow short ones, e.g., the lengthened intervals which follow the doublets in Fig. 1C. The doublets, however, do not merely represent the inverse of this relation, e.g., short tending to follow long. They are not only short intervals; they are stereotyped, very short intervals, such as the ones seen in the external cuneatenucleus7 20. Fig. I H shows a joint interval density, where successive intervals are plotted against each other26. Ordinary rhythmic firing at various rates produces points along the 45° diagonal; the points clustered at about 2 msec parallel to the axes demonstrate the lack of gradation of this unique short interval phenomenon. Since 2 msec corresponds to the peak of the hump following the rhythmic spike (Fig. 1 G), one may say that these are 'extra spikes' produced by the depolarizing aftermath of a previous spike. Sometimes a triplet is seen (Fig. 1L), suggesting that the hump following the extra spike itself also elicits another extra spike in a regenerative cycles. This constitutes a mode of repetitive firing with distinctly different properties from the occasional and rhythmic modes.

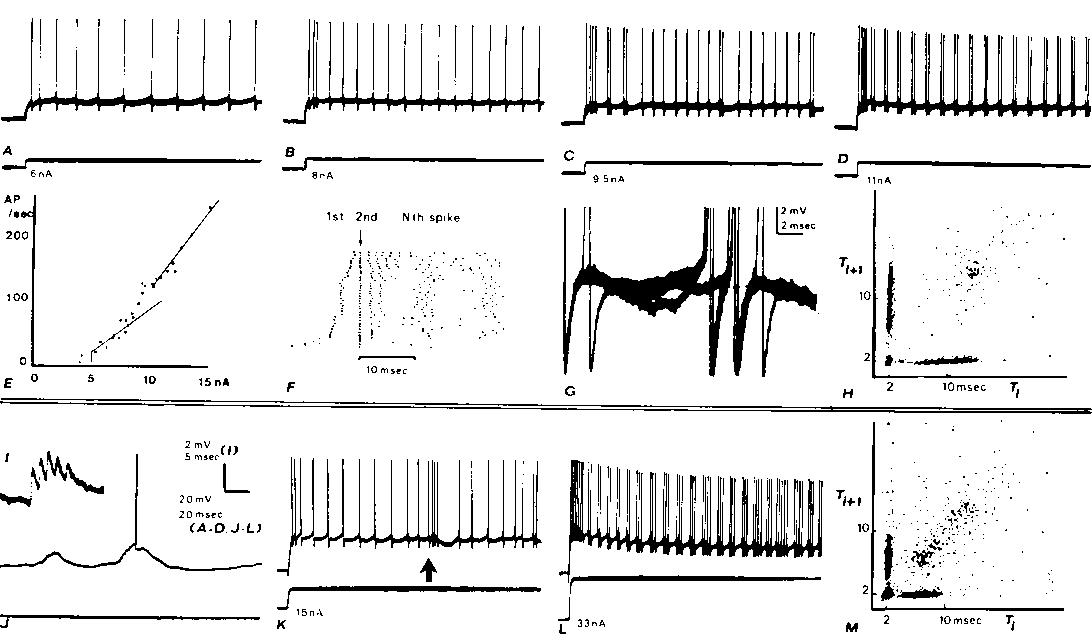

Fig. 1. Intracellular recordings from two cortical neurons (A-H, I-M) with axons projecting into the medullary pyramids with fast conduction velocities. Both neurons exhibit doublet discharges during otherwise rhythmic firing from steps of current injected through the recording micropipette (A). Rhythmic firing evoked by a 6 nA step. B: in response to 8 nA, the rhythmic firing rate increases and a 2 msec interspike interval is seen after the second rhythmic spike. C: a doublet discharge is seen occasionally during otherwise rhythmic firing at 9.5 nA. D: with 11 nA (and greater) currents, doublet discharges recur rhythmically. E: plot of adapted firing frequency versus the injected current. At low currents before doublets are seen during adapted discharge, the frequency-current relation has a slope of 13.6 spikes/sec/nA. At higher currents, when doublet discharge is well-established during maintained firing, the slope is 25 spikes/sec/nA. The intermediate points which have not been fitted with straight lines are those currents at which mixed responses were elicited (as in C). F: raster displays which aligns the second spike of each response below the arrow: dots representing the first spikes appear to the left of the arrow. Data from many different current steps (range as in E) arranged in ascending order. The 11 nA step was repeated 12 times. G: membrane potential trajectory between spikes during adapted firing; 3 superimposed sweeps triggering upon a spike several hundred msec after the beginning of the train in C. In 2 cases, no doublet occurred and a hump can be seen following the spike; in the third case, an extra spike is seen arising from a level just above this hump. H: joint interval density is a scatter plot of interspike interval versus the following interspike interval. Plot mixes the responses from the entrire range of current values shown in E and F. The 'arrow pointing to the origin' shape of this plot is characteristic of the fast PT neurons which develop doublets at higher rhythmic rates (see M). I-M: similar records from another fast PT neuron. The effects of a large synaptic input associated with a spindle in the electrocorticogram (ECoG) are shown in I-K. I: large unitary-appearing events in synaptic noise. I: spindle associated synaptic waves arising from the —80 mV resting potential elicit occasional spikes. K: low-frequency rhythmic response to a current step is interrupted by a spindle wave at arrow; note gradual rise in firing rate. L: after exhibiting a progressive development of doublets as illustrated for the other neuron in A-D, this neuron developed triplets and even longer clusters of extra spikes at higher currents. (Baseline changes are due to tip potential alteration with current.) Thus high-frequency bursts may be due to either large synaptic waves (as in K) or to an extra spike mode of rhythmic firing. M: joint interval density as in H.

      Koike et al.21 have noted that fast PT cells may exhibit an unusual adaptation pattern in that the declining firing rates do not begin until after an initial rise in rate, i.e., the first interspike interval may be longer than the second in response to a current step. In our fast PT cells exhibiting doublets, it was apparent that the adaptation pattern also involved the extra spike mode. The raster displays in Fig. IF aligns the second spike of the responses to various current steps. It is apparent that the stereotyped doublet interval begins to appear after the second rhythmic spike in Fig. 1B; at higher currents, higher in the raster, a triplet is seen (Fig. 1C) which suggests that the depolarizing aftermath of the extra spike has itself generated another extra spike. One may thus get a stereotyped 'burst' following the second spike of the response which is little different over wide variation in levels of input. For the fast PT cell illustrated in Fig. IKL, this long-first-interval pattern was not seen. In epileptogenic cerebral cortex, both humane and in chronic monkey preparationsl0'l2 29 30, many neurons observed with extracellular recording will spontaneously exhibit high-frequency burst firing patterns. While the firing patterns of many of these neurons are often sufficiently variable from one burst to the next as to suggest a large, variable synaptic wave driving the rhythmic firing mode to high rates2, other neurons exhibit very stereotyped burst patterns. We earlier showed10 that some of these neurons exhibit 'long-first-interval' patterns in which the burst may be stereotyped starting with the second spike, with the first spike standing in front at various intervals. All such neurons are fast PT cells, in the case of monkeys12. Spinal motoneurons not infrequently exhibit depolarizing afterpotentials which begin after the second spike of a rhythmic trains 9, making extra spikes more likely to occur after the second spike; this tendency may explain many long-first-interval phenomena (but see Wyler et al.29).
      The origin of the depolarizing humps is not well understood; in spinal motoneurons19 23, recurrent axon synaptic effects have been ruled out and dendritic currents suggested as a mechanisms.. Grampp15 has demonstrated in lobster stretch receptors using extracellular field maps and simultaneous intra-dendritic and intrasomatic recording that the humps are correlated with the antidromic invasion of the dendritic tree by the spike. Thus, at the time the soma repolarizes, the remnants of the spike are still left in the dendrites and cause depolarizing current to flow to the soma in a manner analogous to synaptic potentials. Due to the extensive apical and basal dendritic trees of PT neurons, this explanation is an obvious candidate for the mechanism underlying the hump in PT neurons. Judging from our present observations, the stereotyped high-frequency bursts probably arise from the extra spike mode. For this class of epileptic neurons, then, the high-frequency burst could be a property of the cell's repetitive firing mechanism and not necessarily associated with a massive synaptic input2; indeed, it is apparent from Fig. 1 that long-first-interval bursts can arise from input currents in the lower third of the frequency-depolarization curve.
      Burst firing patterns provide potent inputs to downstream cells5~24 25. When minor inputs can produce major outputs from cells, one suspects that such cells could play a critical role in the recruitment of other cells into the burst firing patterns which characterize the interictal epileptogenic focus5. We thus believe that the extra spike mode may play an important role in epileptogenic cerebral cortex.
